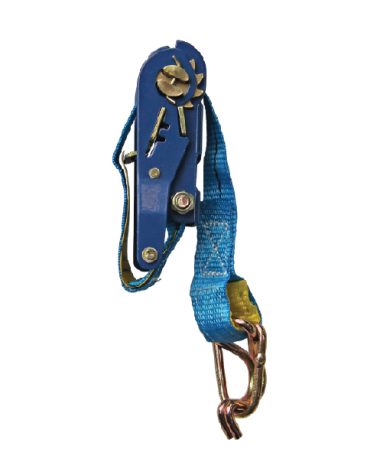

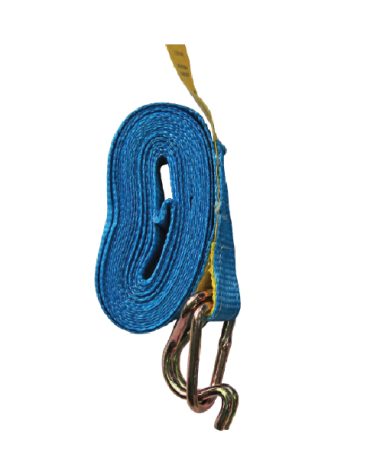

Ratchet Tie Down assemblies offer a complete lashing system designed to deliver high pretension, reducing cargo movement and minimising damage during transport.
- Description
Description
Features
- Lashing capacities available from 350kg to 5,000kg with Webbing widths from 25mm to 75mm
- Manufactured from high tenacity polyester Webbing, heavy duty Hook and Keepers stamped with lashing capacity, heavy duty powder coated Ratchet Buckle
- ID tagged on both tail and free end of strap with, lashing capacity, strap length, safety information, date of manufacture, batch numbered and branded for traceability
- Batch Test Certificate available upon request. Complies with AS/NZS 4380
Specifications
| WEBBING WIDTH (mm) | LASHING CAPACITY (kg) | END FITTING | SIZE (mm X m) |
|---|---|---|---|
| 25 | 350 | S Hooks | 25 x 4.5 |
| 25 | 500 | H/Keeper | 25 x 4.5 |
| 35 | 500 | S Hooks | 35 x 6 |
| 35 | 1500 | H/Keeper | 35 x 6 |
| 50 | 2500 | H/Keeper | 50 x 9 |
| 50 | 2500 | J Hook | 50 x 9 |
| 75 | 5000 | H/Keeper | 75 x 9 |
